| 项目 | Model | LX1804 | |
| Tractor Parameters 拖拉机参数 | 驱动型式 | Drive Type | 四驱 4WD |
| 外形尺寸(mm) | Overall Dimension(mm) | 5211×2350×3140 | |
| 最小使用质量/Kg | Min. operating weight(kg) | 5950 | |
| 额定牵引力/N | Rated traction force(N) | 56990 | |
| 常用轮距（前轮/后轮） | Wheel tread (front/rear) | 1980/1662 | |
| 轴距(mm) | Wheel base(mm) | 2688.5 | |
| 最小离地间隙 | Min. ground clearance(mm) | 460 | |
| 最小转向半径/m | Min. Turning Radius(mm) | ≤7.3 | |
| 理论前进速度 | Theoretical Speed(forward) | 0.29～30.45 | |
| 理论后退速度 | Theoretical Speed(reverse) | 0.62～14.22 | |
| Engine Specification 发动机说明 | 发动机型式 | Engine Model | 直列、水冷、四冲程、直喷 Vertical, water cooled, four stroke, direct injection |
| 气缸数 | Number of cylinders | 6 | |
| 发动机转速(r/min) | Engine Rated speed(r/min) | 2200 | |
| 发动机标定功率(Kw) | Engine Rated power (Kw) | 132.4 | |
| Drive System 传动系统 | 离合器型式 | Clutch | 干式、双作用、独立操作 Dry type,dual-function,independent operation |
| 变速箱型式 | Gear box | 4×（3+1）×2 | |
| 主传动型式 | Main drive | 螺旋圆锥齿轮 Spiral bevel gearing | |
| 差速器 | Differential | 闭式，4个行星锥齿轮 Closed, 4 planeatry bevel gears | |
| 差速锁 | Differential lock | 机械差速 Mechanical locking differential | |
| 最终传动 | Final drive | 单级行星齿轮 Single planeatry gear | |
| Traveling Mechanism 行走系统 | 前轮轮胎 | Tyre(front) | 14.9-26 |
| 后轮轮胎 | Tyre(rear) | 18.4-38 | |
| 转向器 | Steering gear | 全液压前轮转向 Full hydraulic front wheel steering | |
| 制动型式 | Brake | 湿式、盘式制动器、静液压操纵 Wet type, disc brake, hydraulic control | |
| Working Device 工作装置 | 动力输出转速(r/min) | PTO Speed (r/min) | 760/850 or 540/1000 |
| 动力输出轴花键尺寸 | PTO Spline Size | 八键或六键 6 splines or 8 splines-φ38mm | |
| 后悬挂最大提升力/N | Max. lifting force( KN ) | 31800 | |
| 三点悬挂类别 | 3-Point suspension | 3类 Category:III |

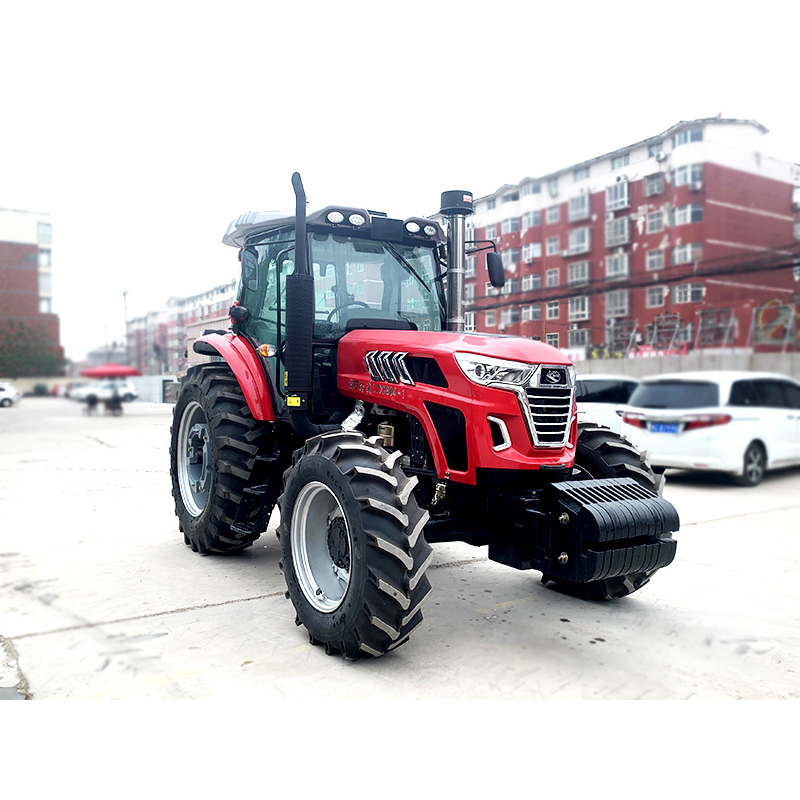

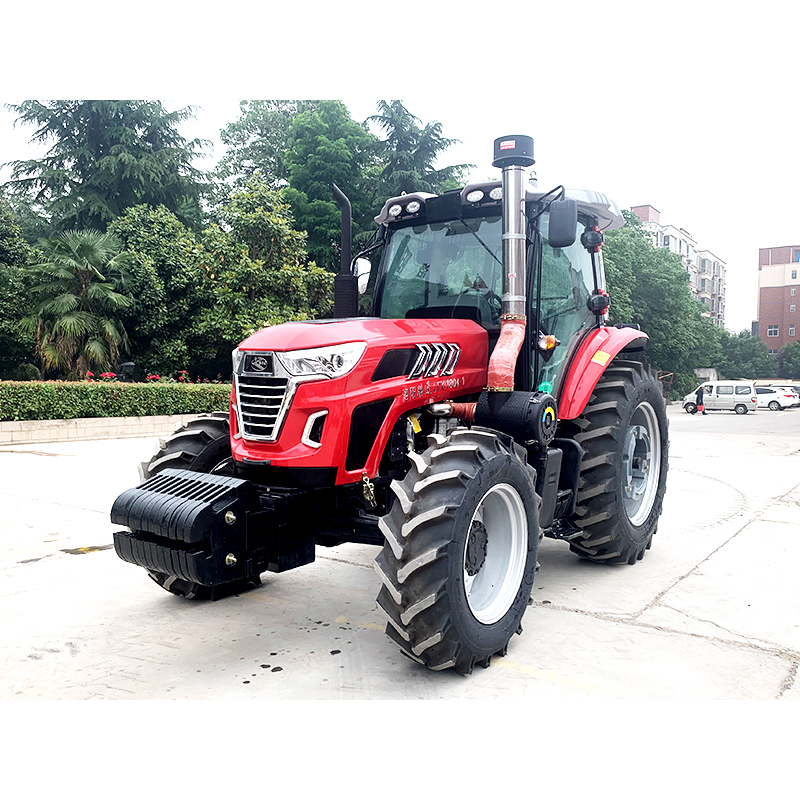

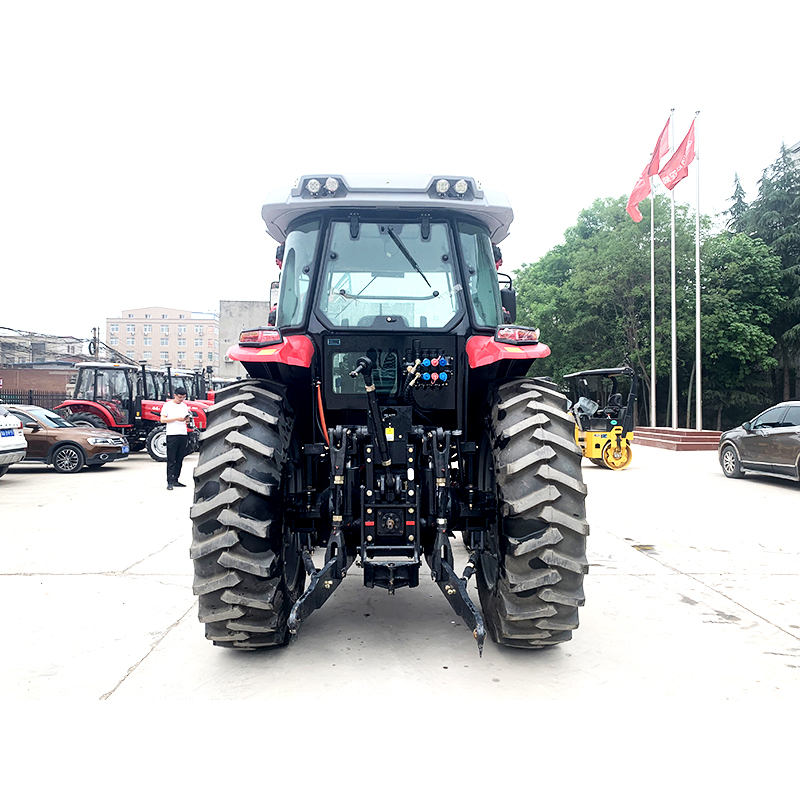

LTX1804 Tractor
Luoyang Lutong Agricultural Equipment Co., Ltd. is mainly engaged in the production of large and medium-sized wheel tractors, which are subsidized by Chinese state govemment.Our main products are Lutong 40HP-260HPseries. According to the requirements of customers, we have developed a variety of configurations suitable for the market demand, such as widening the wheelbase, heightening the ground clearance, using swing drawbar and common drawbar at the same time....
Product Details
